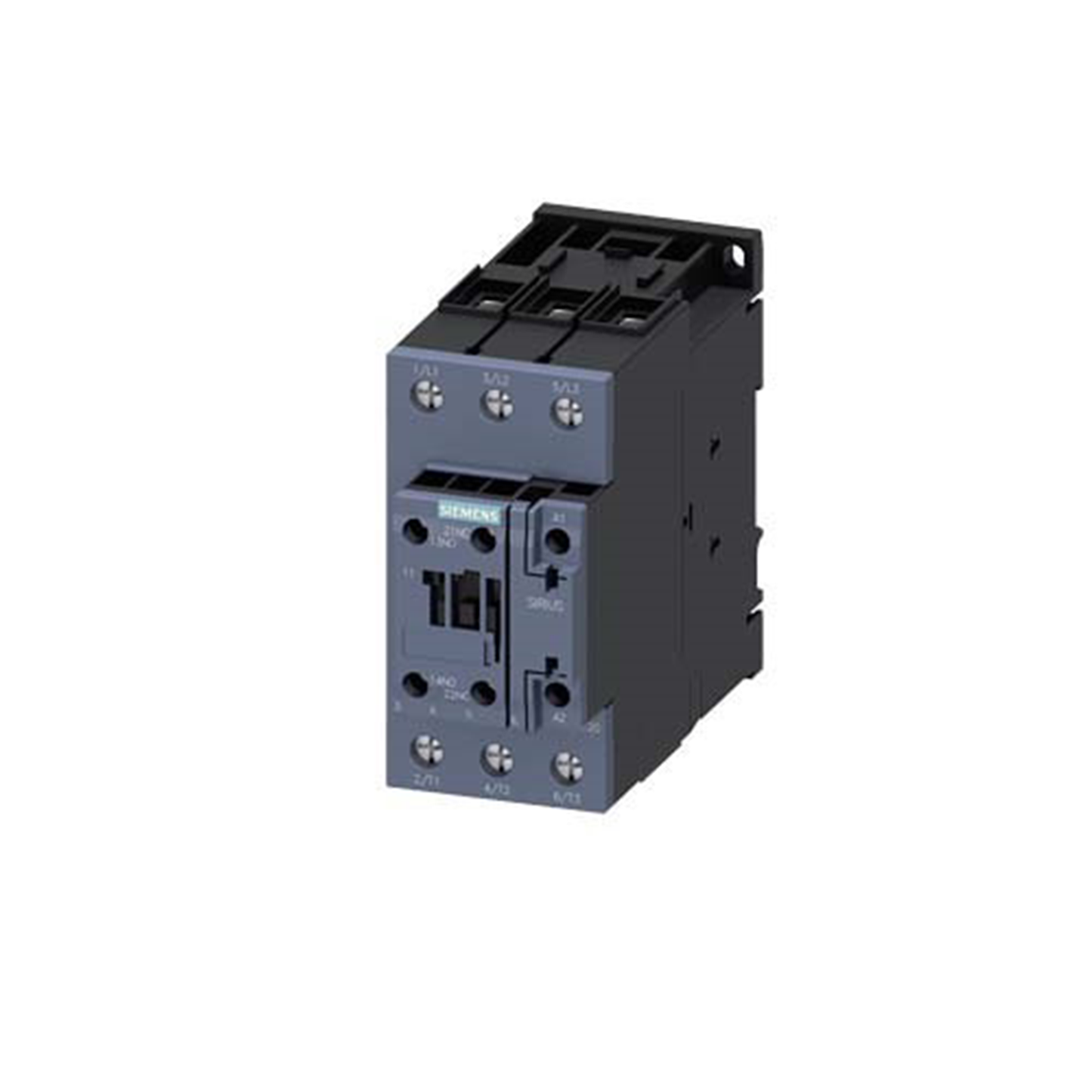

SIRIUS S2 CONTACTOR - SIEMENS

Product Description:

Siemens SIRIUS S2 Contactors are designed for efficient control of motors and power circuits in demanding industrial applications. They offer handling capacities of up to 25HP at 220V and 50HP at 440V, with rated currents up to 80A. These contactors are available with coils that operate over a wide range of voltages, both in alternating current (AC) and direct current (DC), ensuring versatility in different applications. Contact configurations include 1NO+1NC for reliable control.

Available Options:

• Siemens 3RT2035 S2 contactor:

  • 15HP 220V, 30HP 440V, 40A, Coil 120V AC 1NO + 1NC
  • 15HP 220V, 30HP 440V, 40A, Coil 20...33V AC/DC 1NO + 1NC
  • 15HP 220V, 30HP 440V, 40A, Coil 220V AC 1NO + 1NC
  • 15HP 220V, 30HP 440V, 40A, Coil 440V AC 1NO + 1NC

• Siemens 3RT2036 S2 contactor:

  • 15HP 220V, 40HP 440V, 50A, Coil 120V AC 1NO + 1NC
  • 15HP 220V, 40HP 440V, 50A, Coil 20...33V AC/DC 1NO + 1NC
  • 15HP 220V, 40HP 440V, 50A, Coil 220V AC 1NO + 1NC
  • 15HP 220V, 40HP 440V, 50A, Coil 24V AC 1NO + 1NC
  • 15HP 220V, 40HP 440V, 50A, Coil 440V AC 1NO + 1NC
  • 15HP 220V, 40HP 460V, 50A, Coil 220V AC 1NO + 1NC

• Siemens 3RT2037 S2 contactor:

  • 20HP 220V, 50HP 440V, 65A, Coil 120V AC 1NO + 1NC
  • 20HP 220V, 50HP 440V, 65A, Coil 20...33V AC/DC 1NO + 1NC
  • 20HP 220V, 50HP 440V, 65A, Coil 220V AC 1NO + 1NC
  • 20HP 220V, 50HP 440V, 65A, Coil 24V AC 1NO + 1NC
  • 20HP 220V, 50HP 440V, 65A, Coil 440V AC 1NO + 1NC

• Siemens 3RT2038 S2 contactor:

  • 25HP 220V, 50HP 440V, 80A, Coil 120V AC 1NO + 1NC
  • 25HP 220V, 50HP 440V, 80A, Coil 220V AC 1NO + 1NC
  • 25HP 220V, 50HP 440V, 80A, Coil 440V AC 1NO + 1NC
  • 25HP 230V, 50HP 460V, 80A, Coil 20...33V AC/DC 1NO + 1NC

Key Features:

• Handling Capacity: Powers up to 25HP at 220V and 50HP at 440V, ideal for high performance applications.
• Coil Versatility: Compatible with a range of AC and DC voltages, including low voltage options (20...33V).
• Control Reliability: 1NO+1NC contact configurations, providing efficient and safe control.
• Rugged Construction: Designed to withstand demanding industrial environments, ensuring continuous and reliable operation.

Applications:

These contactors are suitable for a wide range of industrial applications including high power motor control, HVAC systems, and other critical installations where precise and reliable power control is required.
