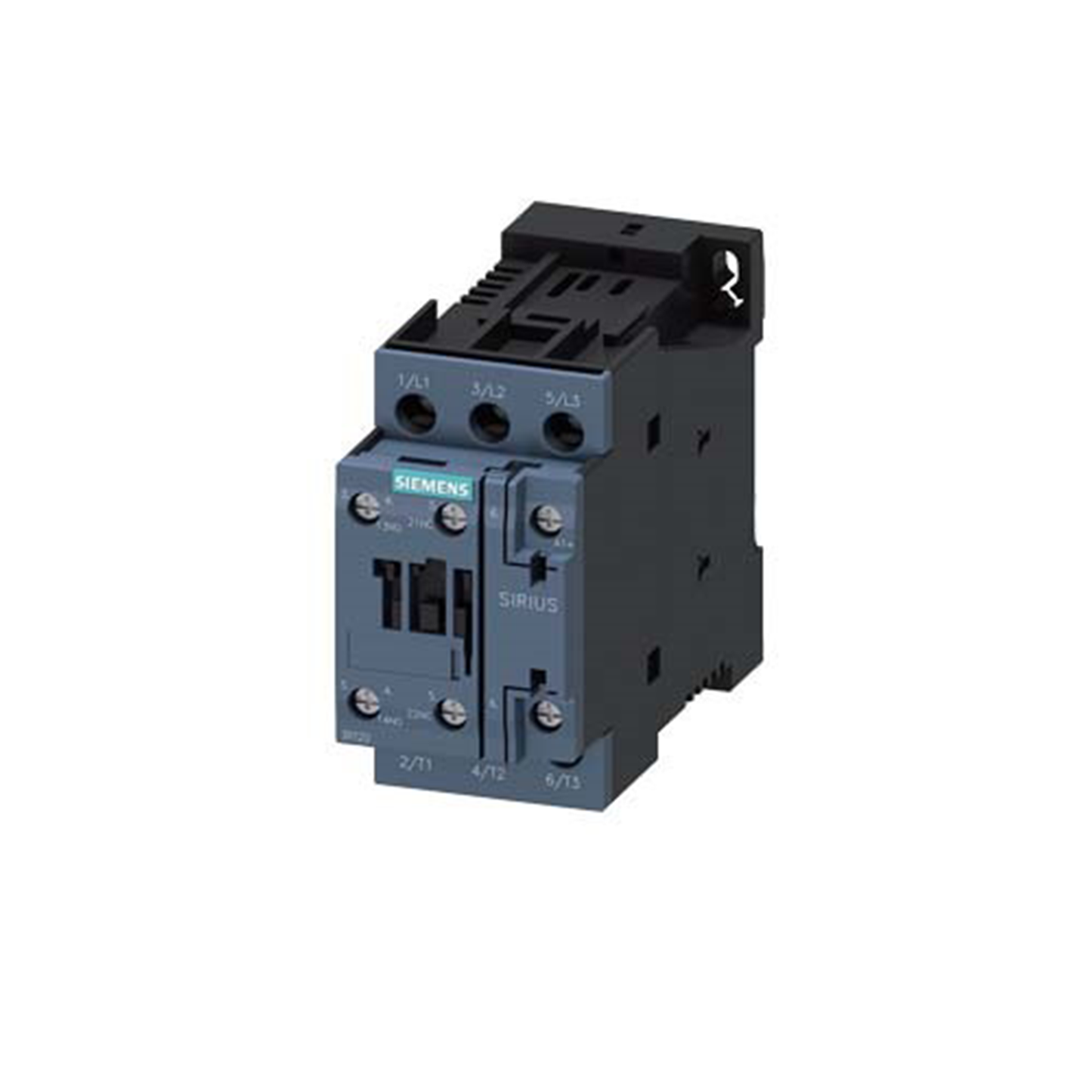

Siemens SIRIUS S0 Contactors are essential components for controlling motors and power circuits in industrial applications. Ranging in capacity from 3HP to 25HP and current ratings up to 38A, these contactors are available in multiple voltage and contact configurations, including 24V DC, 110V AC, 120V AC, 220V AC, and 440V AC coils. Contact options include 1NO+1NC combinations, and some versions feature spring-loaded connections for faster, safer installation.
Available Options:
Siemens 3RT2023 S0 contactor:
3HP 220V, 5HP 440V, 9A, Coil 24V DC 1NO + 1NC
Siemens 3RT2024 S0 contactor:
3HP 220V, 7.5HP 440V, 12A, Coil 110V AC 1NO + 1NC
3HP 220V, 7.5HP 440V, 12A, Coil 24V AC 1NO + 1NC
3HP 220V, 7.5HP 440V, 12A, Coil 24V DC 1NO + 1NC
3HP 220V, 7.5HP 440V, 12A, 24V DC Coil 1NO+1NC with Spring Connection
Wide Power Range: Handling capacity of up to 25HP at 440V, ensuring robust performance for industrial applications.
Coil Variety: Compatible with multiple coil voltages, offering flexibility for various installations.
Contact Configuration: 1NO + 1NC options, tailored to meet specific control needs.
Connection Options: Some models feature spring-loaded connections, simplifying installation and improving safety.
Benefits:
Efficiency and Reliability: Designed to operate efficiently in demanding industrial environments, ensuring long life and consistent performance.
Versatility: With multiple voltage options and contact configurations, they are suitable for a wide range of control applications.
Easy Installation: With spring-loaded connection options and rugged construction, these contactors are easy to integrate into new or existing systems.
Applications:
Siemens SIRIUS S0 contactors are ideal for controlling motors and power circuits in industrial applications such as HVAC systems, manufacturing plants and other facilities where reliable and safe power control is required.
